Narvi Standard Chimney Flue Kit

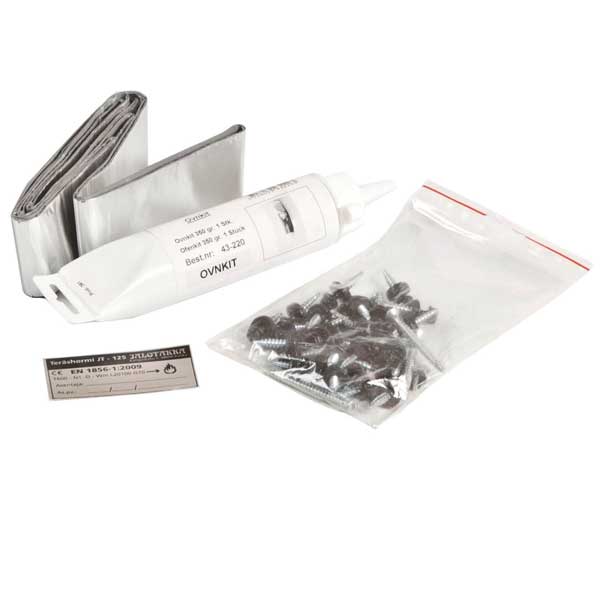

This steel Flue kit offers a reliable and fire-safe solution for sauna heaters and other fireplaces. Its design prioritizes fire safety and insulation around ceiling penetrations. The modular steel flue system adapts to various building requirements. The uninsulated 100mm stainless steel start pipe, with a 120/122 mm diameter, fits sauna stoves with a 119mm smoke outlet. This pipe can be inserted into the insulated section for easier stove or chimney maintenance. An optional adapter (product 6015-111) allows connection to stoves with a 115mm flue outlet. The outer casing is zinc-coated steel with black heat-resistant paint, and the flue diameter is 255 mm. Insulated with fire-resistant mineral wool, the inner tube is 125 mm stainless steel. A permanently installed damper enhances safety. CE-marked for fire safety class T600, the kit includes all necessary components for installation. The insulated section measures 1,500 mm, with a maximum main kit length of about 2,500 mm without extensions.

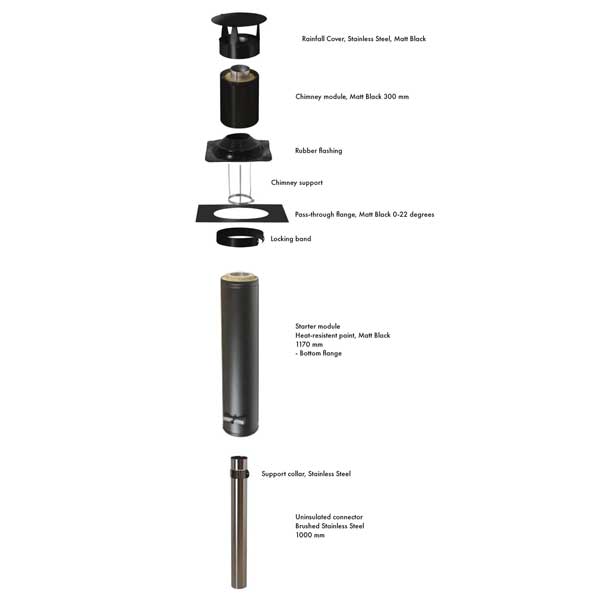

1170 mm insulated damper section & 300 mm flue section (inner diameter is 125 mm)
1000 mm non-insulated, stainless steel connection pipe (inner diameter 120 mm, outside                 diameter 122)
Fastening ring
Feedthrough flange 0–22 degreees
Feedthrough cover, height 400 mm
Carrier ring of the flue with perforated band
Support of the base
Rubber sealing of the roof
Rainfall cover of the flue
